Product Description
Cartridge
AUDIO TECHNICA
AT-91

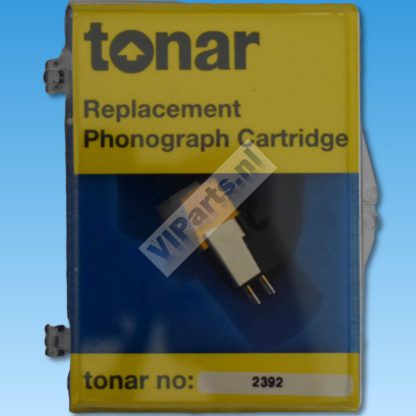

TONAR 2392 OR PACKED:
-Original Cartridge AUDIO TECHNICA
AT-91-B packed by TONAR DeLuxe Box
TONAR 9542 OR PACKED:
-Original Packing AUDIO TECHNICA
AT-91(EX) Blister Pack
Comes with mounting screws and instruction manual
Other related codes:
AT-91 / AT-91-B / AT-91-EX
EAN: T4961310009885
Note from original packing:
“Replaces any cartridge with ½ mount / mounting screws.
Should only be mounted on turntables with adjustable tracking force.”
| Technical Data | AT91 |
| Frequency Response (Hz): | 20 – 20,000 |
| Output Voltage (mV) (1 KHz, 5 cm/sec): | 3.5 |
| Channel Separation (dB) (1 KHz): | More then 20 |
| Channel Balance (dB) (1 KHz): | Within 2.5 |
| Tracking Force (g) (Normal Force 2.0 g): | 1.5 – 2.5 |
| Coil Impedance (Ω) (1 KHz): | 2,8 |
| Coil DC Resistance (Ω): | 410 |
| Coil Inductance (mH): | 480 |
| Dynamic Compliance (x 10-⁶ cm/dyne): | 6.5 |
| Static Compliance (x 10-⁶ cm/dyne): | 20 |
| Load Resistance (KΩ): | 47 |
| Load Capacitive (pF): | 100 – 200 |
| Stylus (mil): | 0.6 |
| Vertical Tracking Angle: | 24º |
| Weight (g): | 5.0 |
| Dimension (m/m): | L31.0 x W16.3 x H17.0 |
| Cantilever: | Carbon |
| Replacement Stylus: | ATN-91 |
