Product Description
AUDIO TECHNICA
AT-120-Eb
Dual Magnet Stereo Cartridge.

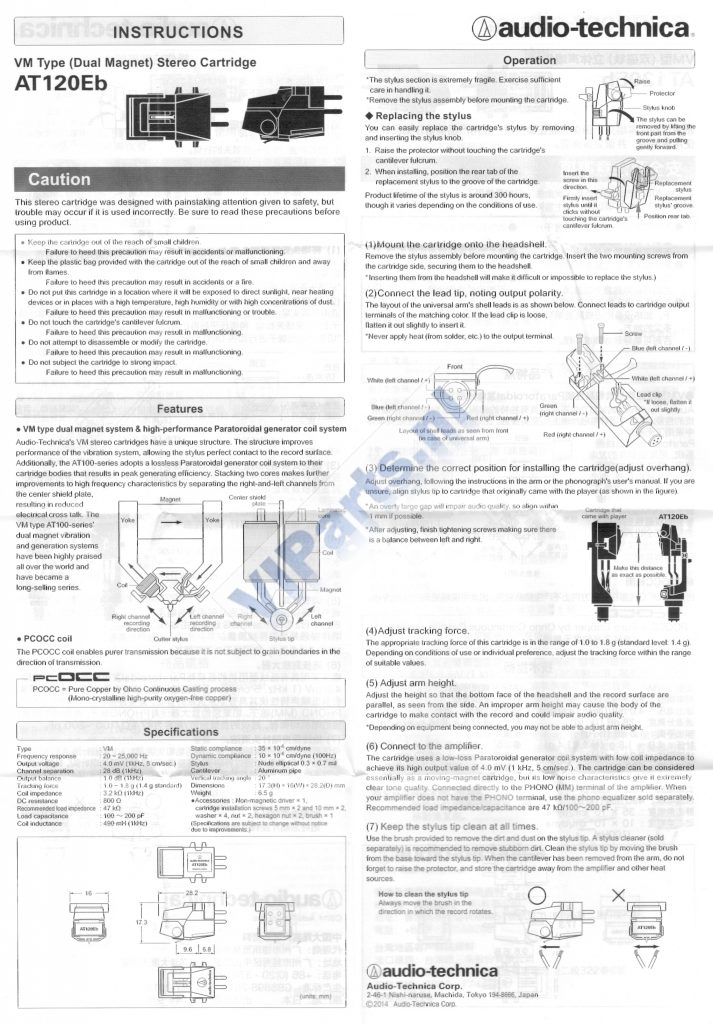

Comes with mounting scews, screwdriver and brush and instruction manual (EN and various Asian languages).
| Technical Data | AT120Eb |
| Type:
Frequency Response: |
VM
20 – 25,000 Hz |
| Output Voltage: | 4.0 mV (1 KHz, 5 cm/sec) |
| Channel Seperation: | 28 dB (1 KHz) |
| Output Balance: | 1.0 dB (1 KHz) |
| Tracking Force: | 1.0 – 1.8 g
(Normal Force 1.4 g) |
| Coil Impedance: | 3,2 Ω (1 KHz) |
| Coil DC Resistance: | 800 Ω |
| Coil Inductance: | 490 mH |
| Dynamic Compliance: | 10 x 10-⁶ cm/dyne (100 Hz) |
| Static Compliance: | 35 x 10-⁶ cm/dyne |
| Recommended Load Impedance: | 47 kΩ |
| Load Capacitance: | 100 ~ 200 pF |
| Stylus: | Nude elliptical 0.3 x 0.7 mil |
| Vertical Tracking Angle: | 20º |
| Weight: | 6.5 g |
| Dimension: | L28.2 x W16.0 x H17.3 m/m |
| Cantilever: | Aluminium pipe |
| Replacement Stylus: | ATN-120Eb |
